Polishing and Sizing Machines

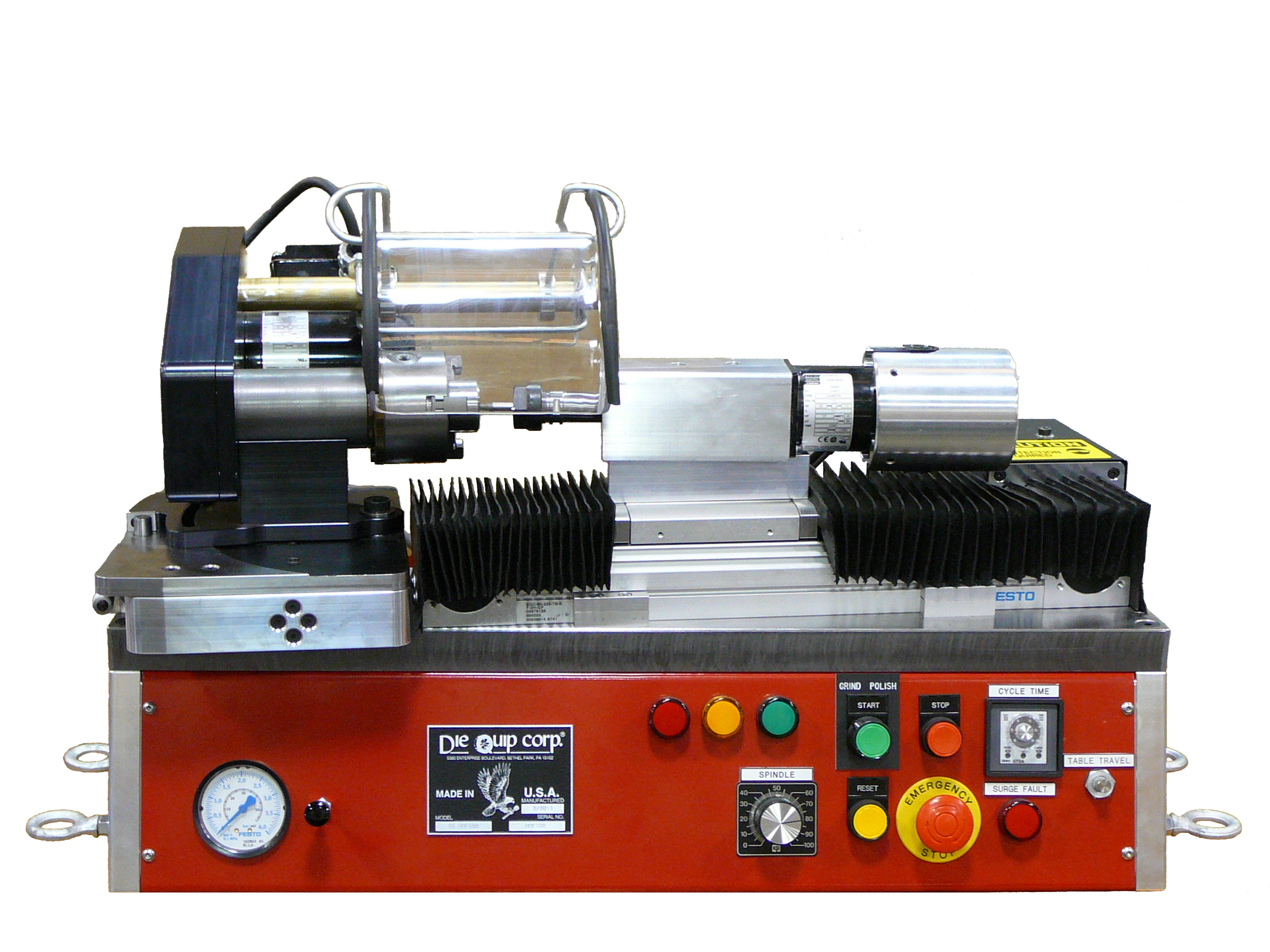

HDF-100 Die Finishing Machine

Finishing machines

Die Quip's HDF is a semiautomatic angle polishing machine that can also be used to calibrate dies to the next size.  With its angle setting gages die geometry can be controlled very accurately and the 9000 RPM spindle is capable of light grinding for small capacity shops.  Combine it with a MGF die grinder for increased production by moving the polishing cycle to the HDF.

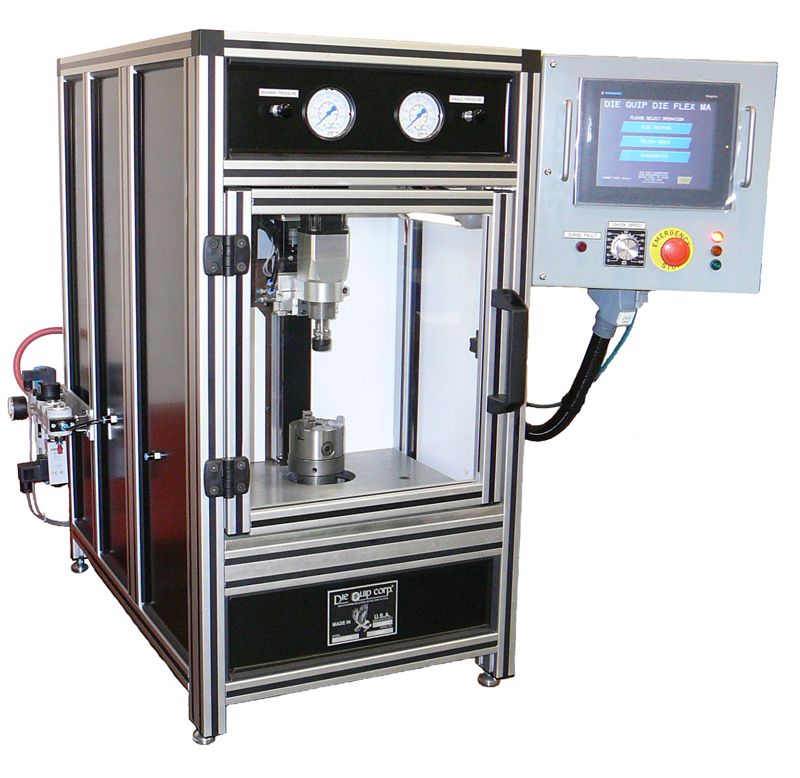

Die Flex MA

Die Flex

Die Quip's Die Flex MA is the next generation of die finishing machinery that has the flexibility to work either the angle or bearing. The machine is perfect for die shops that produce a small number of dies per size were automation takes to long to set up. Combined with a manual or semiautomatic grinding machine the Die Flex MA will increase the productivity of any die shop.

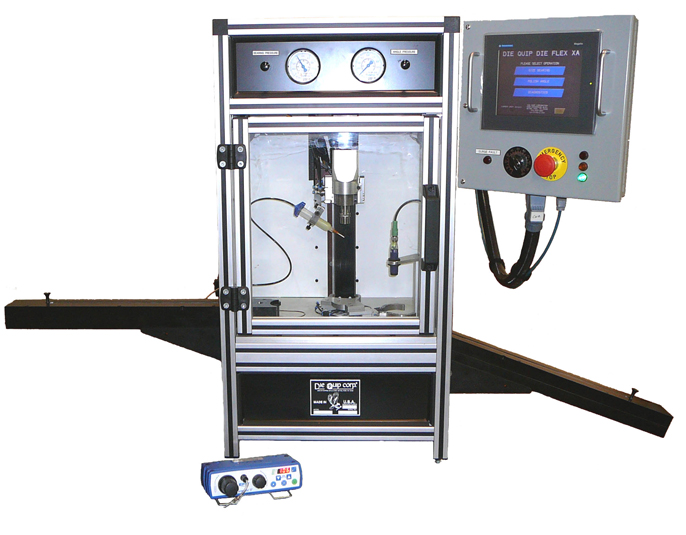

Die Flex XA

Die Flex

Innovative design increases die production, fIexibility and ease of use. Die Quip's Die Flex XA is the next generation of die finishing machinery that can do three times the work of traditional equipment. The robotic die changing and removable magazines give it the flexibility to work the angle, bearing or both without handling the dies. This continuous production prevents machine downtime and dramatically increases throughput with less overhead costs.




Twister Speed Lathe

Twister Speed Lathe

The Twister is a full-featured speed lathe designed exclusively for polishing dies with handheld tools. A lever Action Ball Bearing 5C Collet closer permits instant chucking and releasing of parts. It features True Variable Speed Selection between 100 and 2500 RPM. Speed can be controlled through the foot switch or front panel. Its capacity is 1/16" - 3" (16-76mm) with a 5" collet.

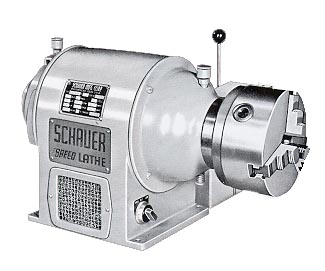

Schauer Speed Lathes

Schauer lathes

Schauer speed lathes are a heavy duty lathe for hand polishing or cleaning. They can be provided with 5c collets or 4-12" (100-300mm) chucks. Models are available in single, dual or variable speeds.
