Die Finishing Machines
Polishing and Sizing
Diamond Tooling

Die Measuring
Die Accessories
Shaped Die Products
Die Grinding Pins

Shaped Die Products

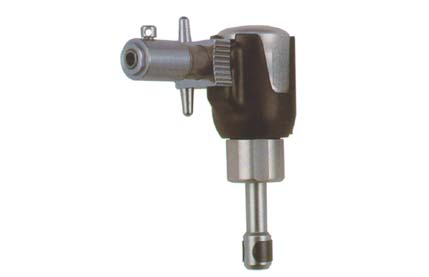

SPD1 Shape Die Polisher

Die Polisher

Die Quip's Die Flex SDP1 is the next generation of shape die finishing machinery that has the flexibility to work either the angle or bearing.  The machine is perfect for die shops that want to maintain their tungsten carbide or diamond shape dies in house or want to machine polish dies after EDM cutting.

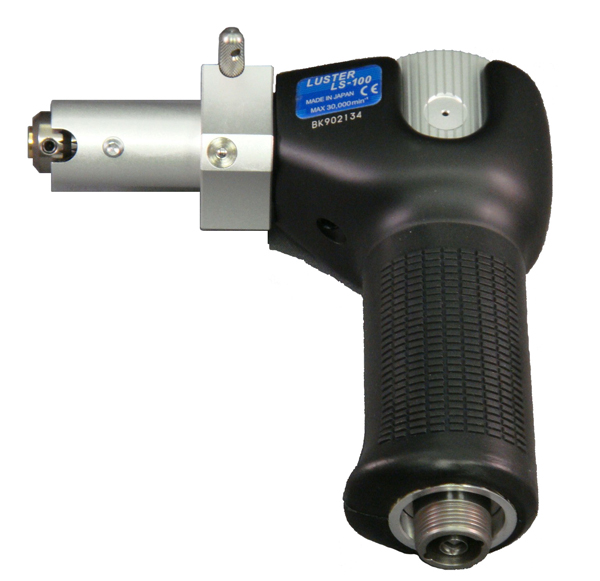

Luster LS-100 Die Profiler

Die Profiler

The “Luster” reciprocating die profiler saves tedious and time consuming hand labor, making it possible to achieve greater accuracy and improve the surface finish of shaped drawing dies or molds.  These units can be controlled by either electric or air motor.  They feature adjustable reciprocation rate up to 7,000 times/minute with a length up to ¼” (6.3mm).  The handle has an ergonomic rubber grip that absorbs vibration and reduces fatigue.  The screw clap tool holder has a maximum capacity of ¼” (6.3mm) Options include foot petal, speed reducers and different motor options to meet individual needs.


FPC Electric Reciprocating Di-Profiler

Die Profiler

Model FPC Electric Reciprocating Di-Profiler saves tedious and time-consuming hand labor, making it possible to achieve greater accuracy, maintain closer tolerances, and improve polishing of shaped draw dies. The Model FPC's rate of reciprication is adjustable from 0 to 14,000 strokes per minute. The length of strokes can be varied from 0 to 1/4". It comes in a sturdy plastic case with wrench, lathe adapter post and bottle of oil. Standard air inlet for cool operation.

FPH Electric Reciprocating Di-Profiler

Die Profiler

Model FPH Electric Reciprocating Di-Profiler is designed to accept up to 1/4" shank tools. The new unit features larger bearings than the Model FPC. The guiding surface area is nearly triple that of the FPC. Repair costs and downtime are dramitally reduced without sacrificing any of the ultra-smooth lightweight features of our Model FPC. Another feature of the FPH is the square drive system which provides a more positive drive and fewer cable replacements. Standard air inlet for cool operation.

FPD Air Reciprocating Di-Profiler

Die Profiler

The Air Operated Di-Profiler is a precise and reliable reciprocating hand machine designed to save unlimited time and cost in metal removal operations. The light weight piston type motor is both compact and rugged, and provides high power to weight ratio. It's automatic speed regulator keeps reciprocating speed constant (without readjustment) once it is set for the job. Because the Di-Profiler motor is air-operated, there is no excessive heat built-up or wear, thus assuring a consistently cool operation. The air operated Di-profiler is ideal for filing, honing and lapping straight and curved surfaces, reworking hardened material, finishing complicated dies and molds, regular or irregular drawing dies, precision lapping of small holes and many other similar jobs.

Diamond Files

Die Quip brings you superior quality diamond files from carefully selected quality diamonds, precisely plated to obtain the best physical properties for added strength and resistance to wear. The high stock removal rate, consistant cutting action and economical price make the Die Quip diamond files a great choice for your application. They are available in a variety of grit sizes.

DLH- Diamond Files are "extra long" with a plated area of 2 1/2" (65mm) and an overall length of 5 1/2" (140mm). They can be used by hand or with a di-profiler and are available in the following shapes:
Profile
Size (mm)
d
5.3 X 1.4
d
3.8
d
2.5 X 2.5
Diamond Files
Profile
Size (mm)
d
5.6 X 1.9
d
3.0
d
5.0 X 1.6
d
5.0 X 2.4
d
5.0 X 2.2

DLE- Are our standard diamond files with a plated area of 1 3/4" (45mm) and an overall length of 3.3" (85mm). They can be used by hand or with a di-profiler and are available in the shapes below.
Diamond Files
Profile
Size (mm)
dd
5.0 X 1
d
Ø 3
d
5.0 X 2
d
5.0 X 2
d
3.5 X 3.5
d
2.5 X 2.5
d
5.0 X 1.0

DBH- These are diamond hand files with a square shank with a plated length of 4.33" (110mm) and an overall length of 5.5" (140mm). They are available in rectangle, round, half round, square and triangle
Diamond Files
Profile
Size (mm)
d
6.8
d
12.5 X 3.9
d
6.1
d
9.9

MI- Die Quip's mini-files are for small diameter work with a plated area of 1.5" (40mm) and an overall length of 5.5" (140mm). They have a square shank and are available in rectangle, round, half round, square, triangle and oval shapes.
Diamond Files
Profile
Size (mm)
d
1.6
d
4.1 X 1.8
d
2.0
d
3.1
d
4.0 X 1.3
d
4.1 X 1.6
d
4.1 X 1.5

DLA- These files can be used at faster speeds and higher temperature due to their shorter length. Plated length depends on the style and size of the tool while they are best used with a di-profiler but can be used by hand.
Profile
Size (mm)
d
2.0 X 1.0 X 15
3.0 X 1.0 X 15
4.0 X 1.0 X 15
4.0 X 2.0 X 15
5.0 X 2.0 X 25
d
2.30 X 1.3 X 15
3.30 X 1.3 X 15
4.30 X 1.3 X 15
5.30 X 2.3 X 15
5.30 X 2.3 X 25
d
1.0 X 15
2.0 X 15
3.0 X 15
4.0 X 15
Diamond Files
Profile
Size (mm)
d
r5.0 X 15
r2.5 X 15
d
2.0 X 15
3.0 X 15
4.0 X 25
d
0.50 X 4.0 X 15
0.75 X 4.0 X 15
1.0 X 4.0 X 15
d
r 1.0 X 15
r 1.5 X 15
r 2.0 X 15

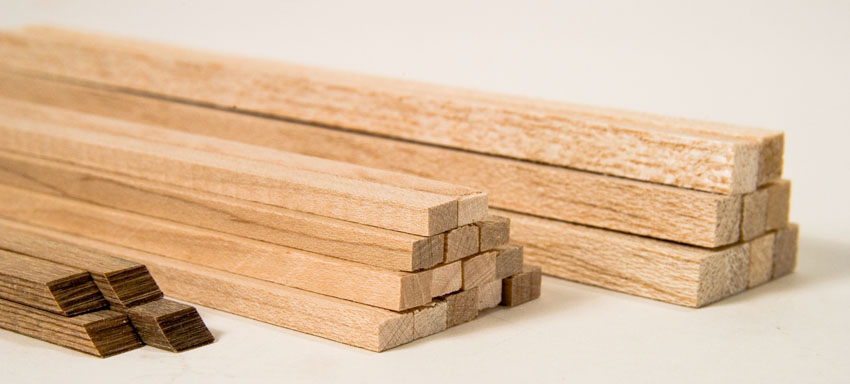

  Lapping Sticks

Lapping Sticks

Die Quip's line of wood lapping sticks are precisely manufactured from the highest quality materials to perform better in high speed hand polishing applications. Choose from our Super-Lap, Maple, Pine or Balsa wood to produce the best finish for your application.

Felt Sheets

Felt Sheets

Available in soft, medium, and hard densities and are used for mirror polishing of drawing mandrels and plugs when mounted to lapping sticks or other media.

Felt Sticks (unmounted)

Felt Sticks

Available in soft, medium, and hard densities and are used for mirror polishing of drawing mandrels and plugs when mounted to lapping sticks or other media.

Felt Sticks (mounted)

Felt Sticks

Available in soft, medium, and hard density and can be used with a di-profiler for mirror polishing of shaped dies.

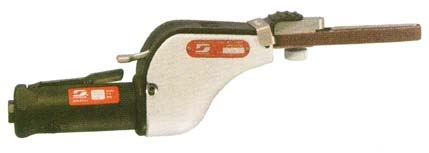

Dynafile® Air Powered Abrasive Belt Machine

Belt machine

Dynafile abrasive belt machines work great to remove metal pickup in shape dies along with grind, deburr, blend, clean, or polish. They can be used on Carbide, Ceramic, Metal, Plastic, Fiberglass, Rubber, Glass, Stone and other materials. Replaces tedious hand filing and sanding.
Features Include:

  • Grind off contact wheel or platen pad
  • Superior belt tracking and patented design permits use of 1/8", 1/4" or 1/2" wide x24" long abrasive belts.
  • Fast abrasive belt change over
  • Work in areas as small as 3/8" diameter.
  • Side handle included for two hand operation
  • Air pressure 90 PSI

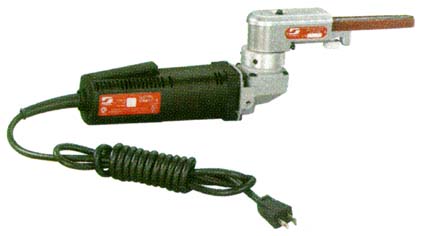

Dynafile® II Electric Powered Abrasive Belt Machine

Abrasive belt machine

Dynafile abrasive belt machines work great to remove metal pickup in shape dies along with grind, deburr, blend, clean, or polish. They can be used on Carbide, Ceramic, Metal, Plastic, Fiberglass, Rubber, Glass, Stone and other materials. Replaces tedious hand filing and sanding.
Features Include:

  • Grind off contact wheel or platen pad
  • Superior belt tracking and patented design permits use of 1/8", 1/4" or 1/2" wide x24" long abrasive belts.
  • Fast abrasive belt change over
  • Work in areas as small as 3/8" diameter.
  • Side handle included for two hand operation
  • Connects to standard 120V outlets
  • 8ft. power cord

Abrasive Belts

Abrasive Belts


Complete Listing of Abrasive Belts

1/8", 1/4", 1/2", & 3/4" widths available in 18" and 24" lenghts. For use on Dynafile abrasive belt machines. Two abrasives are offered

  • Regalite / Polycut is a combination of 3M cubitron mineral and special aluminum oxide mineral coated on a synthetic backing.
  • Three-M-ite is 3M's standard aluminum oxide mineral on a cloth backing.

World Wide
